IP23 Hv Slip Ring Motor

Basic Info

Model NO.	Yr7103-4-3550kw
Application	Industrial
Operating Speed	Constant Speed
Number of Stator	Three-Phase
Species	Yr Motor
Rotor Structure	Winding Type
Casing Protection	Protection Type
Number of Poles	4
Starting Mode	Auto-induction Voltage-reduced Starting
Certification	ISO9001, CCC
Brand	China Motor
Voltage	3kv/6kv/6.6kv/10kv/11kv
Nsulation Class	F
Output Power	3550kw
Cooling Method	IC01/IC411
Protection	IP23/IP44/IP54
Duty	S1
Frequency	50Hz.60Hz
Wire	Copper Wire
Driving	Compressor, Pump, Crushers, Stock-Removing Machine
Transport Package	Plywood Case
Trademark	ZCL
Origin	Shijiazhuang, China
HS Code	8501530090
Production Capacity	200 Sets Per Month

Product Description

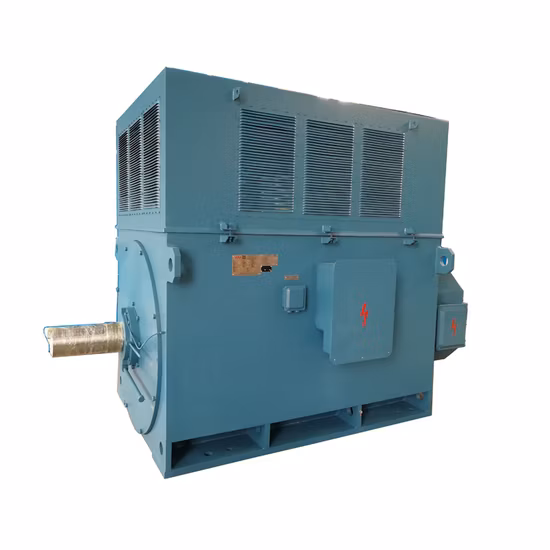

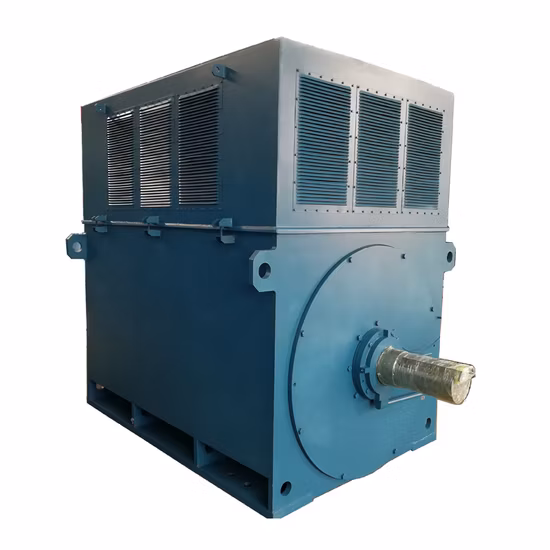

The power level, installation dimensions and electrical performance of the HV high-voltage slip ring three-phase asynchronous motor are in compliance with relevant IEC standards. The basic installation method of the motor is the horizontal bottom angle (IMB3), the working system is the continuous working system (S1), and the wound rotor is made of Class F insulation material.The bearing of HV wound rotor slip ring motor has two types of rolling bearing and sliding bearing, depending on the motor power and speed. If the motor has a high degree of protection, the protection level of the bearing will also increase. The rated frequency of the motor's power supply is 50Hz, the rated voltage is 6000V/10000V, and the basic type of protection is IP54. The motor slip ring housing can be protected to IP22 or IP23. Other voltage, frequency and degree of protection motors are also available upon request.HV winding rotor slip ring motor main outlet box is IP54 protection grade, generally installed on the right side of the motor (facing the motor shaft extension end), can also be installed on the left side of the motor according to the order requirements. Inside the main outlet box, outside There are separate ground terminals.HV winding slip ring motor increases the setting and bearing temperature measuring device. It can also add heating device inside the motor. The shaft extension key of the motor generally adopts the tangential key, and the motor carbon brush is not lifting structure.HV wound rotor slip ring motor can be used to drive a variety of different machinery, such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, machinery industry, petrochemical industry, power plants, etc. Used as prime mover in various industrial and mining enterprises. The motor used to drive the blower, coal mill, rolling mill and winch should indicate the purpose and technical requirements when ordering, and adopt special design to ensure reliable operation.

Center height range: H355 ~ 1000mmPower range: 220kW ~ 10000kWNumber of poles: 2/4/6/8/10/12Rated voltage: 3000V/6000V/6600V/10000V/11000VRated frequency: 50HZ/60HZProtection level: IP23 or IP44Insulation class: FWork system: S1 (continuous)Cooling method: IC01/IC611Installation form: IMB3Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)Altitude: no more than 1000mThis type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).

The HV wound rotor slip ring motor can increase the large starting torque at a small starting current. The motor is suitable for applications where the capacity of the feeder line is insufficient to start the squirrel-cage rotor, the starting time is long, the starting is frequent, and the small-range speed regulation is required. This series of motors has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance.
