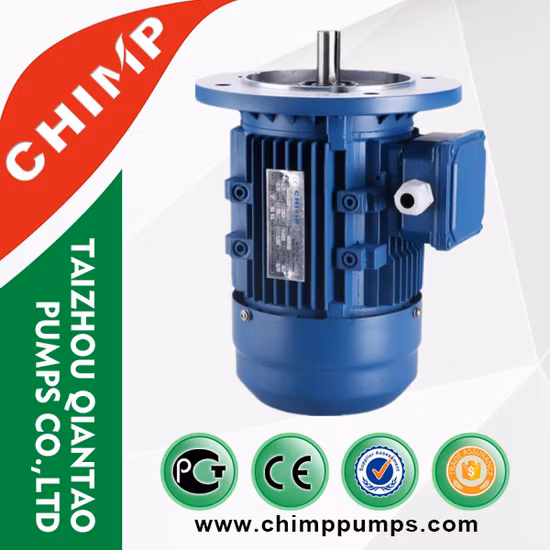

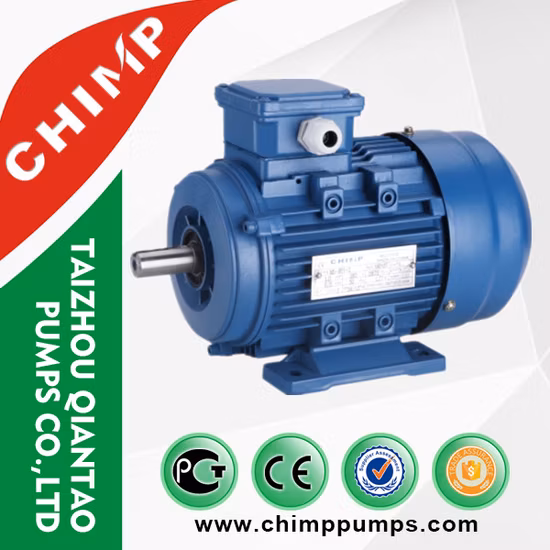

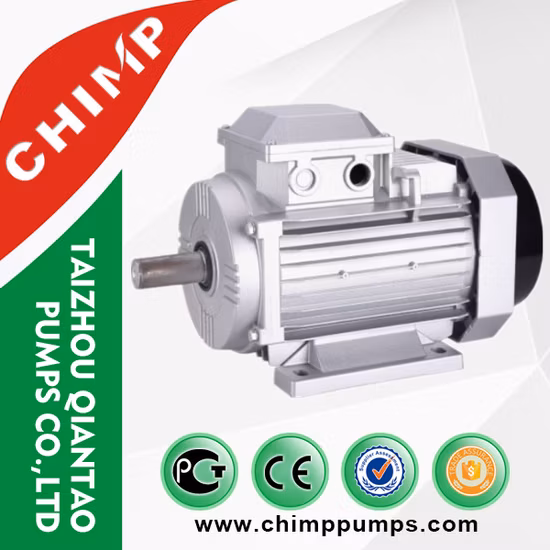

Ms Series Aluminum Housing High Efficiency Induction Motor

Basic Info

Model NO.	MS
Starting Mode	Direct on-line Starting
Certification	ISO9001, CCC, Ce
Brand	Chimp/OEM
Base Center Height	63-255 mm
Power Range	0.75-22kw
Nsulation Class	B /F
Protection Class	IP54 (or IP55)
Work System	S1
Rated Voltage	380V, Optional 220V-720V
Transport Package	Strong Carton Packing with Export Standard.
Trademark	CHIMP / OEM
Origin	China
HS Code	8501520000
Production Capacity	1500PCS Per Day

Product Description

Feature:

MS series aluminum housing three-phase asynchronous motors,in line with the relevant provisions of the international Electrical Commission IEC,made of high quality raw materials with latest structure design. Has a good performance,low noise,small vibration,safe and reliable operation,nice apperance,small size,light weight,simple structure,easy maintenance etc. Applcable to the reducer,fans,pumps,air compressors,lines,packaging industry,food machinery and wood working machinery etc.

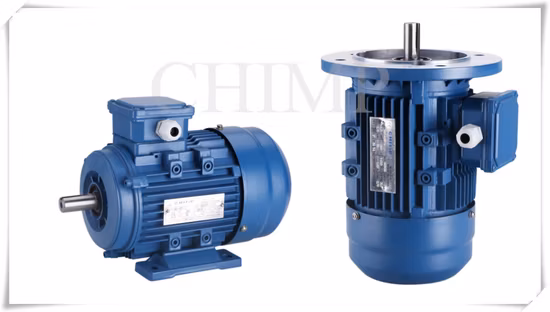

Mounting Structure:

B3 Frame without foot cover end flange
B35 Frame with foot cover end flange
B5 Frame with foot cover end flange

	INSTALLATION SIZE AND OVERALL DILMENSION
FRAME	INSTALLATION SIZE																			OVERALL DIMENSIONS
	IMB5									IMB14				IMB3
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	HD	L
56	90	71	36	9	20	3	7.2	56	5.8	65	50	80	M5	2.5	98	80	120	7	3	110	120	110	155	195
63	100	80	40	11	23	4	8.5	63	7	75	60	90	M5	2.5	115	95	140	10	3	130	130	115	165	230
71	112	90	45	14	30	5	11	71	7	85	70	105	M6	2.5	120	110	160	10	3.5	145	145	125	185	225
80	125	100	50	19	40	6	15.5	80	10	100	80	120	M6	3	165	130	200	12	3.5	160	165	135	215	295
90S	140	100	56	24	50	8	20	90	10	115	95	140	M8	3	165	130	200	12	3.5	180	185	145	235	335
90L	140	125	56	24	50	8	20	90	10	115	95	140	M8	3	165	130	200	12	3.5	180	185	145	235	360
100L	160	140	63	28	60	8	24	100	12	130	110	160	M8	3.5	215	180	250	15	4	205	215	170	255	380
112M	190	140	70	28	60	8	24	112	12	130	110	160	M8	3.5	215	180	250	15	4	145	240	180	285	400
132S	216	140	89	38	80	10	33	132	12	165	130	200	M10	4	265	230	300	15	4	280	275	195	325	475
132M	216	178	89	38	80	10	33	132	12	165	130	200	M10	4	265	230	300	15	4	280	275	195	325	515
160M	254	210	108	42	110	12	37	160	15	/	/	/	/	/	300	250	350	19	5	325	325	255	385	600
160L	254	254	108	42	110	12	37	160	15	/	/	/	/	/	300	250	350	19	5	325	325	255	385	645
180M	279	279	121	48	110	14	42.5	180	15	/	/	/	/	/	300	250	350	19	5	355	380	280	455	700
180L	279	279	121	48	110	14	42.5	180	15	/	/	/	/	/	300	250	350	19	5	355	380	280	455	740

TYPE	OUTPUT	RATED CURRENT	RATED SPEED	η	POWER FACTOR	LOCKED-ROTOR CURRENT/RATED TORQUE	LOCKED-ROTOR TORQUE/RATEDTORQUE	PULL-OUT TORQUE/RATEDTORQUE
	KW	IN(A)	nN(rpm)	%	cos Φ	Tst/TN	Ist/TN
MS-90S-6	0.75	2.08	934	75.9	0.72	2.2	4.5	2.4
MS-90L-6	1.1	2.97	945	78.1	0.72	2.4	4.5	2.6
MS-100L-6	1.5	3.80	945	79.8	0.75	1.8	4.2	2.2
MS-112M-6	2.2	5.37	960	81.8	0.76	2.3	4.5	2.8
MS-132S-6	3	7.19	964	83.3	0.76	1.8	4.5	2.4
MS-132M1-6	4	9.43	965	84.6	0.76	2.3	5	2.7
MS-132M2-6	5.5	12.6	965	86.0	0.77	1.9	5.5	2.8
MS-160M-6	7.5	16.7	970	87.2	0.78	2	6.5	3
MS-160L-6	11	24.1	970	88.7	0.78	2.4	7.5	3.3
MS-180L-6	15	31.4	975	89.7	0.81	2	6.4	2.7



Taizhou Qiantao Pumps is a modern enterprise with a combination of development, production, service. It is specialized in producing electric pump and motor with more than 50 series and 1000 specifications.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.

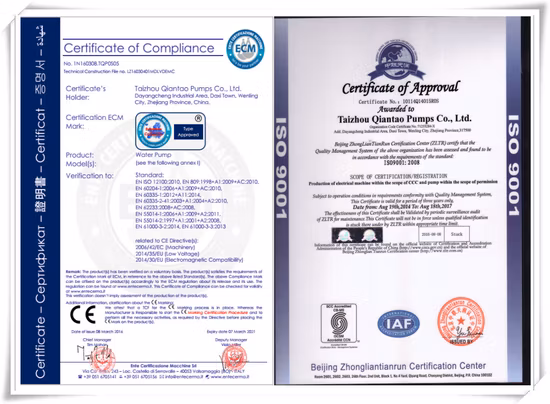

We own advanced electric pumps and assembly line for motors as well as online automatic testing systems. All these equipments supply favorable managing condition and reliable detecting methods. Our company has passed the ISO9001:2000 international quality system certification and "3C" electrician product certification. The products have won the producing licence granted by the national technical supervision bureau and "Agricultural Machinery popularization licence" granted by the national agriculture ministry.
