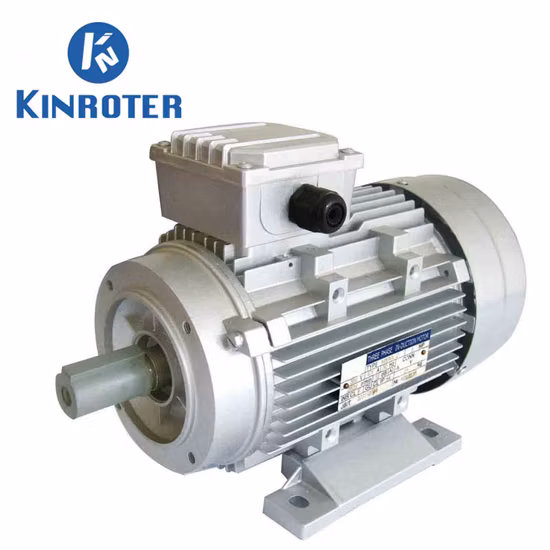

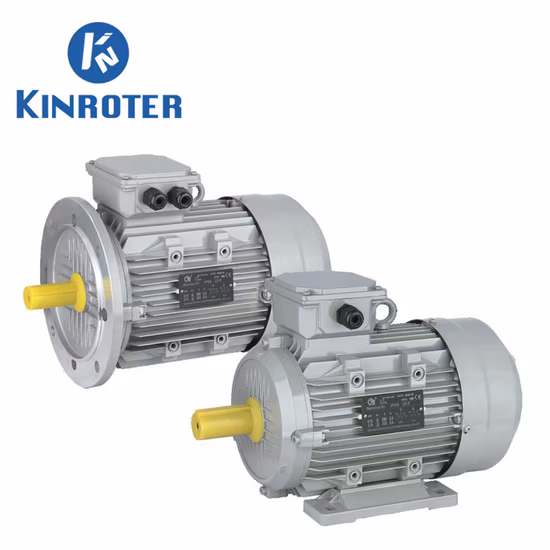

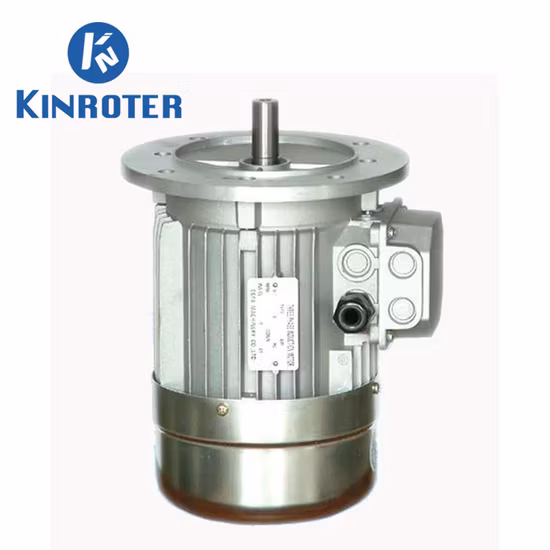

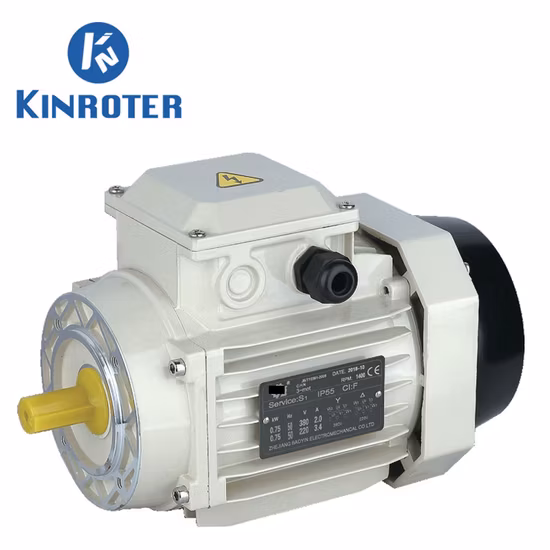

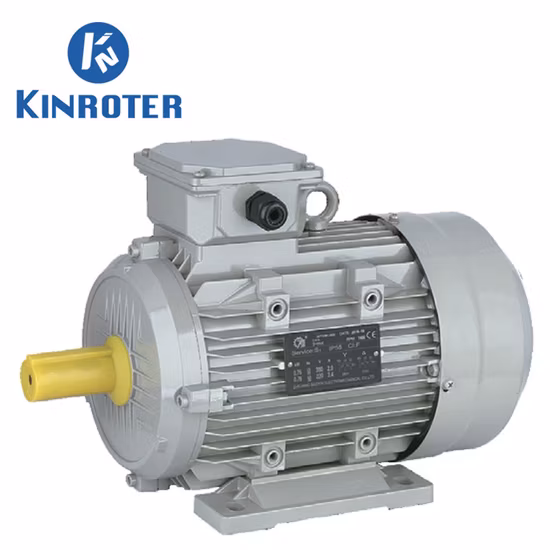

Ys/Ms Series Three Phase Asynchronous Induction Motor

Basic Info

Model NO.	YS160M1-8
Starting Mode	Direct on-line Starting
Certification	ISO9001, CCC, CQC, CE
Brand	Yihe, Yuanli
Protection Classes	IP55
Guanrantee	12months
Delivery Time	20days
Color Painting	as Per Request
Protect Feature	Drip-Proof
Cooling Way	IC411
Frame Materials	Aluminum (3/4-10HP), Cast Iron (3/4-270HP)
Rated Voltage	380V or Customized
Rated Frequency	50Hz.60Hz
Continuous	S1 or S4
Rated Power	0.25kw~18.5kw
Eff	81%
Current	10.3
P.F	0.73
Weight	60kgs
Transport Package	Cardboard & Wood
Specification	100% COPPER WIRE, SILICON SHEET 600
Trademark	Yihe, . yuanli
Origin	China
HS Code	8501510010
Production Capacity	10000PCS Per Month

Product Description

Why choose us ?
ELECTRIC MOTOR FEATURES

Electric motor frame from 56 - 355, output range from 0.17HP to 430HP

Motor mounting type B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101)

Optional voltage 110V, 120V, 220V, 240V, 220/380V, 230V/400V, 380V/660V, 50HZ or 60HZ

Protection type IP44, IP54, IP55 on request

Multiple mounting arrangement for optional Aluminum frame, end shields and base

Strong cast iron frameHigh strength cableShaft key and protector supplied Superior paint finish 45# steel shaft and stainless steel shaft is optionalElectric motor continuous duty S1,S4Electric motor have vacuum impregnation for insulation
Electric motor is class F insulation and class H insulation is optionalElectric motor has been make according to ISO9001, CE, UL, CCC, GS request

All of our products are make according to GOST, RoHS and IEC standard.

High performance and IE1, IE2, IE3 efficiency

OUR ELECRIC MOTOR FOR CUSTOMER BENEFITS

Electricity saving and quiet operationElectric motor can withstand water, dust and verminElectric motor very easy installationElectric motor dependable Corrosion resistant and long life to workReliability performance and very competitive price.

HOW TO MAKE MOTOR ON JUAO COMPANY

1. Silicon steel DR510, 800, 600, 360 standard use stamping of lamination stator and rotor die-casting

2. 100% copper winding and inserting stator (manual and semi-automatically)

3. Stator Vacuum impregnation and drying

4. CNC machining motor shaft, frame, end shields, etc

5. Professional workman inspecting spare parts every processing

6. Electric motor assembly product line

7. Electric motor will 100% test before painting.

8. Electric motor spray-paint on motor painting product line

9. Electric motor will 100% check again before packing.

An electric motor from material to finish motor, must pass 15 time check, and 100% testing, output power, voltage, electric current, non-load, 50% load, 75% load, 100% load and check the nameplate, packing. Finally shipping to our customer.

Att:Our company price was based on high height cold rolled steel stator to promise the efficiency ,if you need to cheaper ,you can choose short height stator or hot cold rolled steel stator ,thankyou
Product details

Application

YS series three phase asynchronous motor is designed and manufactured according to the national standard JB/T1009-1991.The eletric motor has the characteristics of high efficiency , energy-saving,low noise,little vibration ,long service life,convenient maintenance and High starting. YS series motors are suitable for air compressor,cutting machine,pump,mixer,argriculture machinery, food processing machine,and other equipment requiring high starting and running torque.

Detailed Product Description

1.CQC,ce certificate 2.Copper wire 3.Cold-rolled silicon steel sheetSpecifications

1) Centre height of frame :71-90mm2) power range: 0.25-18.5kw3) Rated voltage: 380V or on your request4) Frequency: 50Hz5) Protection class: IP446) Insulation class: B7) Materials: Iron or alu 8) Duty type: S1

Note: If you have any special requirements, please contact us.

Connection
connection method under 3KW connection method above 3KW

FAQ

Q1: What about the shipping methods?

1): For urgent order and light weight, you can choose the following express: UPS, FedEx, TNT, DHL, EMS.

For heavy weight, you can choose to deliver the goods by air or by sea to save cost.

Q2: What about the payment methods?

A2: We accept T/T, L/C for big amount, and for small amount, you can pay us by PayPal, Western Union etc.

Q3: How much does it cost to ship to my country?

A3: It depends on seasons. Fee is different in different seasons. You can consult us at all times.

Q4: What's your delivery time?

A4: Usually we produce within 25-30days after the payment came.

Q5: Can I print our logo/code/series number on your motor?

A5: Yes, of course.

Q6: Can I order some sample for our testing?

A6: Yes, but it needs some expenses.

Q7: Can you customize my product in special requirement?

A7: Yes, we can offer OEM.
